a(chn)Ʒf(shu)
J41WPN16~PN160P䓽ֹyք(dng)mBӡֱͨʽyܷϞ 0Cr18Ni9 ϵP(J41W-16P~160P)0Cr17Ni12Mo2 ϵP(J41W-16R~160R)1Cr5Mo tf(J41W-16I~160I)Q(chng) PN16~PN160ywϞ 0Cr18Ni9 ϵP(J41W-16P~160P)0Cr17Ni12Mo2 ϵP(J41W-16R~160R)1Cr5Mo tf(J41W-16I~160I)Ľֹy

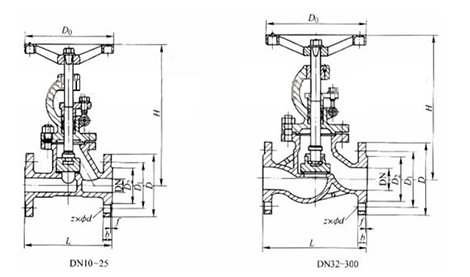

Y(ji)(gu)(jin)D

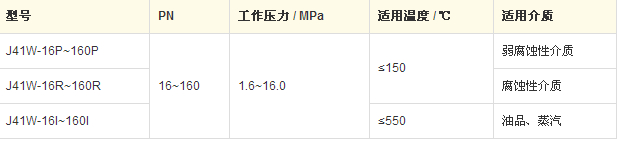

܅(sh)

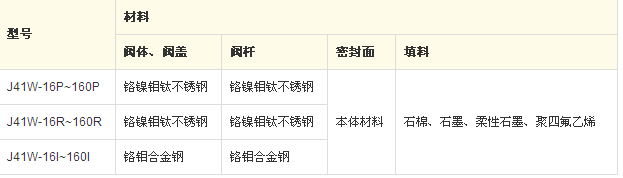

ϡ
μY(ji)(gu)ߴ硿
| DN | L | D | D1 | D2 | b | z*d | H | D0 | (kg) |
| 10 | 130 | 90 | 60 | 40 | 14 | 4*14 | 198 | 120 | 5 |
| 15 | 130 | 95 | 65 | 45 | 14 | 4*14 | 200 | 120 | 5.5 |
| 20 | 150 | 105 | 75 | 55 | 14 | 4*14 | 243 | 140 | 7.3 |
| 25 | 160 | 115 | 85 | 65 | 14 | 4*14 | 253 | 160 | 8 |
| 32 | 180 | 135 | 100 | 78 | 15 | 4*18 | 280 | 160 | 12 |
| 40 | 200 | 145 | 110 | 85 | 16 | 4*18 | 312 | 200 | 16 |
| 50 | 230 | 160 | 125 | 100 | 16 | 4*18 | 321 | 200 | 16 |
| 65 | 290 | 180 | 145 | 120 | 18 | 4*18 | 325 | 240 | 22 |
| 80 | 310 | 195 | 160 | 135 | 20 | 4*18 | 355 | 240 | 31 |
| 100 | 350 | 215 | 180 | 155 | 20 | 4*18 | 415 | 280 | 45 |
| 125 | 400 | 245 | 210 | 185 | 22 | 4*18 | 460 | 320 | 80 |
| 150 | 480 | 280 | 240 | 210 | 24 | 8*23 | 510 | 360 | 97 |
| 200 | 600 | 335 | 295 | 265 | 26 | 12*23 | 590 | 360 | 169 |
ע?zhun)γߴĹQ(chng)PN161.6MPa
(sh)(j)DƬֻmڅ܅(sh)Y(ji)(gu)ߴ煢(sh)r(ji)ԔՈ(qng)(lin)ϵ҂Ԓ021-59170722!
